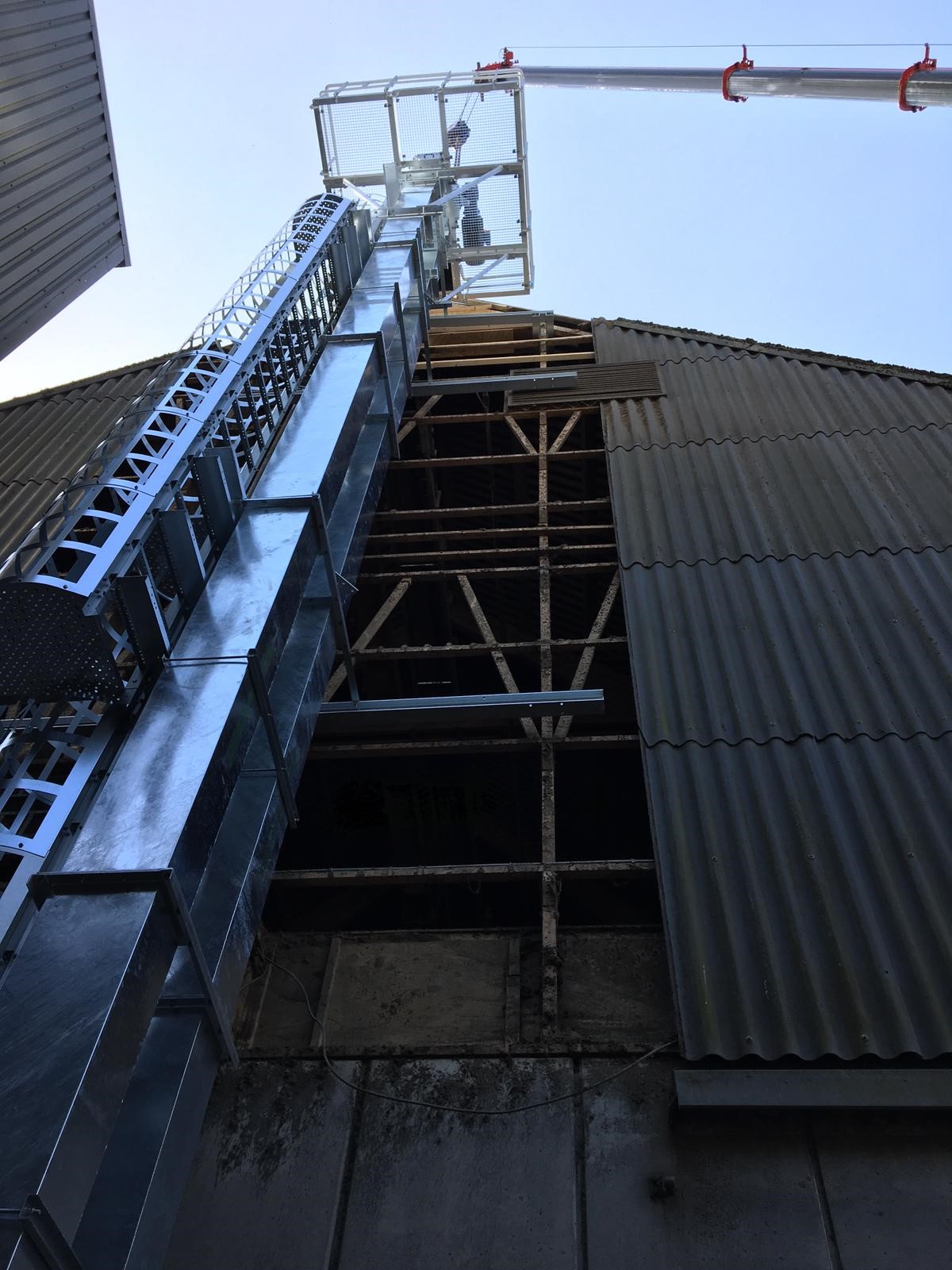

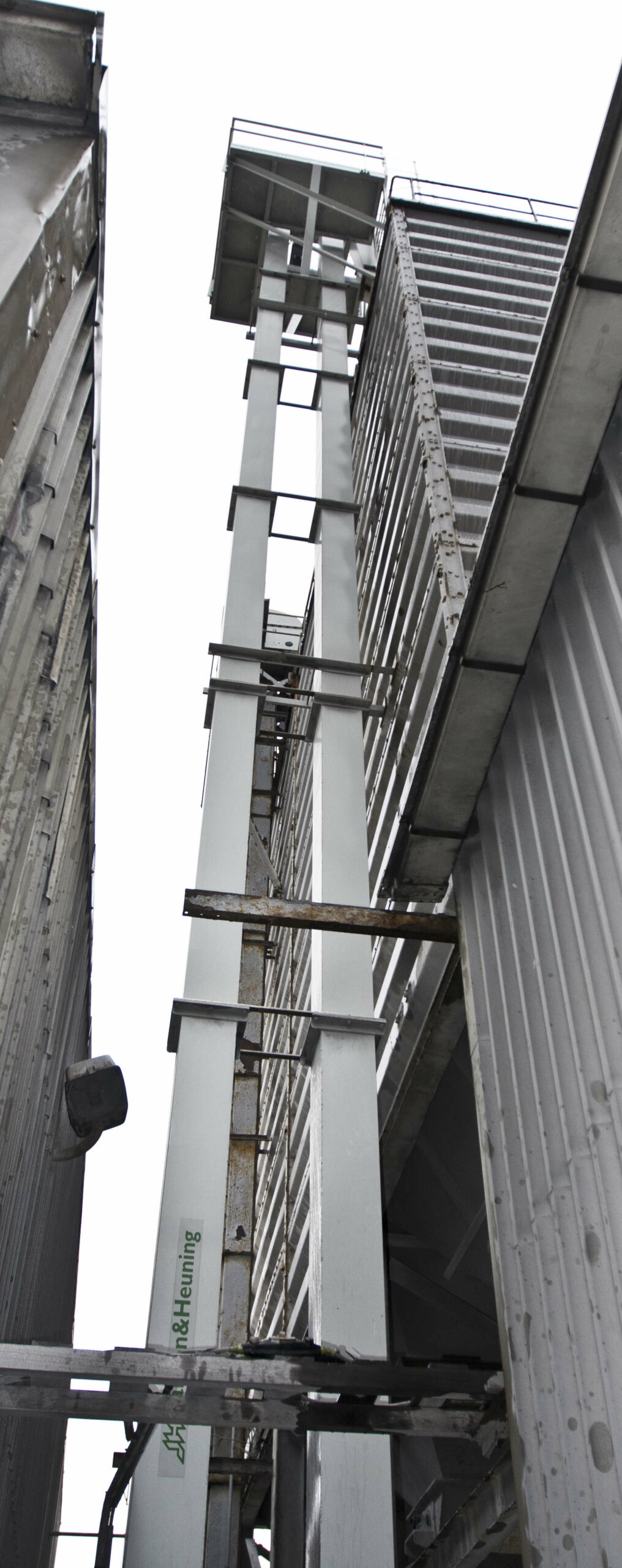

Description Bucket elevator JHE530
Jansen&Heuning’s bucket elevator JHE530 is designed for vertical transport of bulk materials such as sand, gravel, and grain. Its fully enclosed and dust-tight construction ensures efficient and safe material handling. With its larger size code and higher throughput, this elevator is suitable for heavy-duty industrial applications requiring high capacity and reliability.

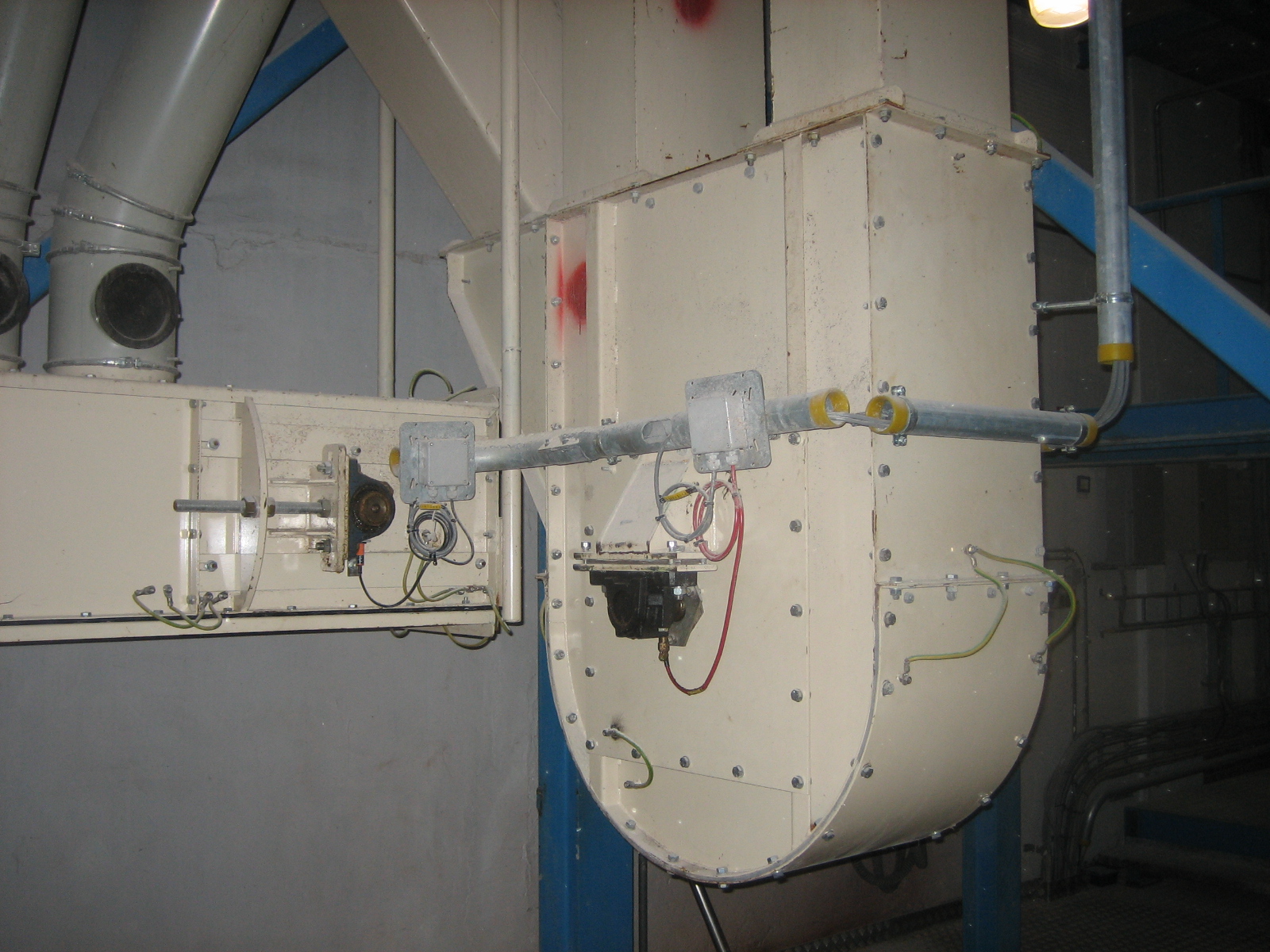

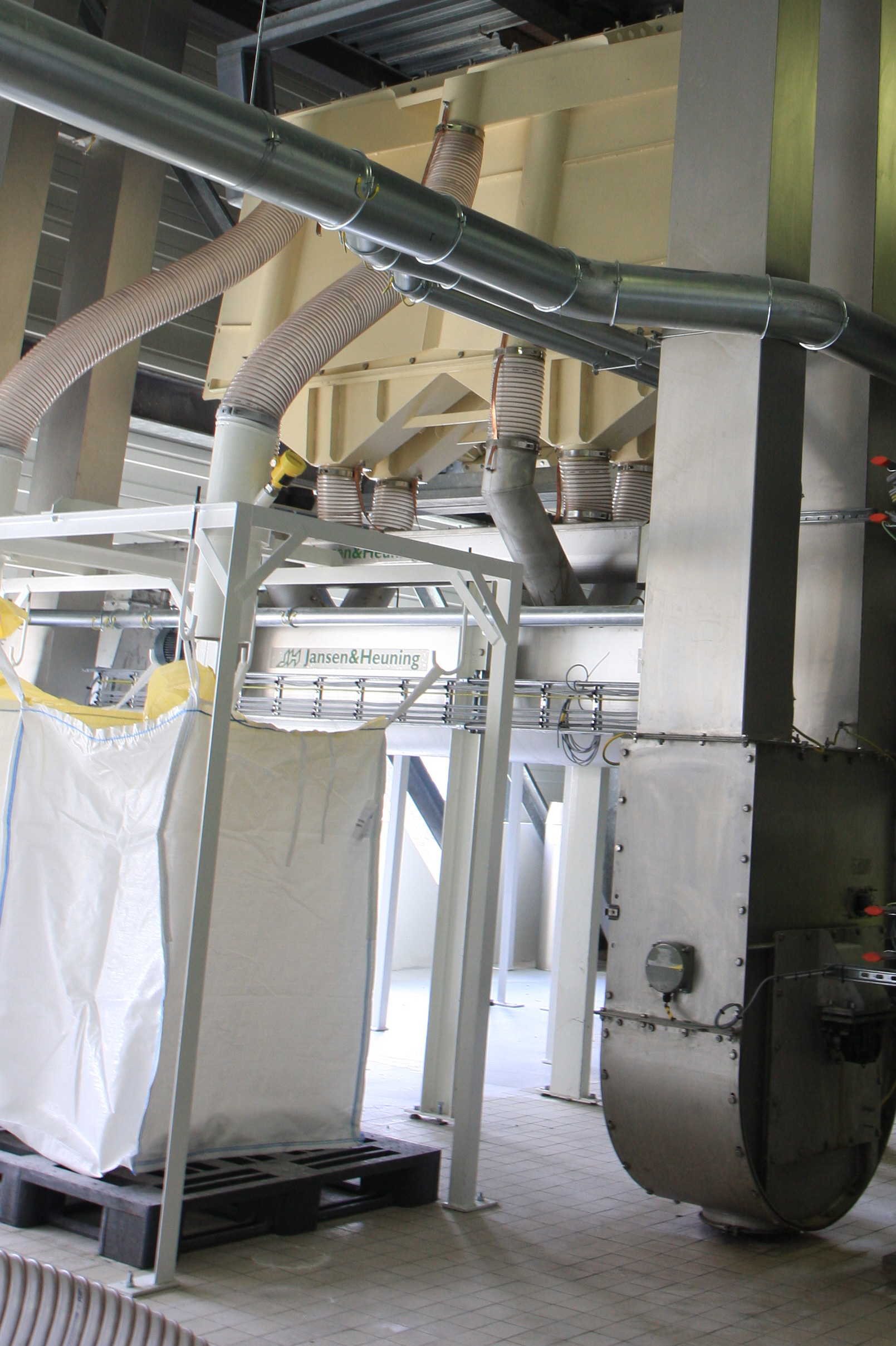

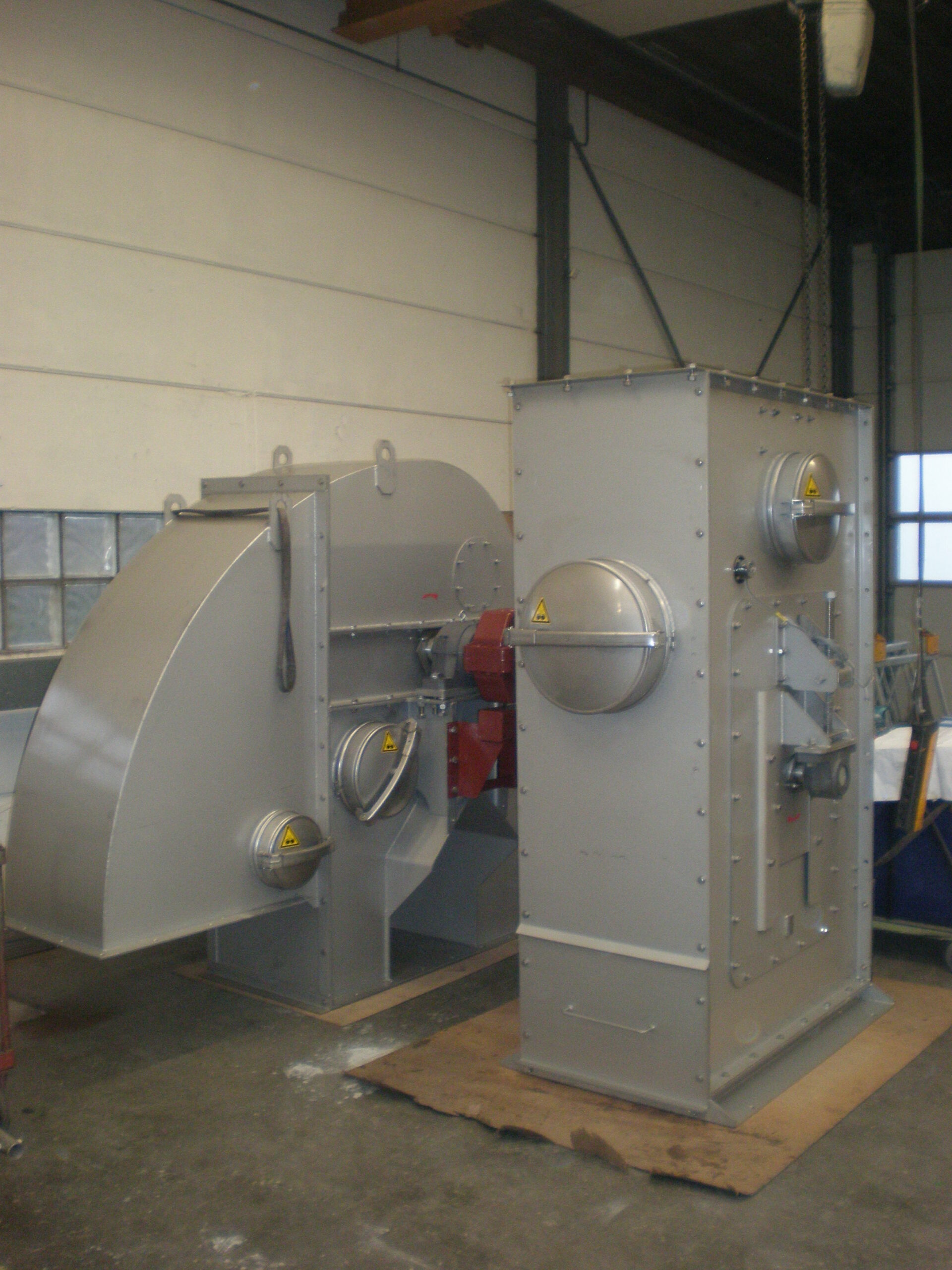

Operation Bucket elevator JHE530
The JHE530 bucket elevator operates with a continuously moving belt fitted with fixed cups. These cups collect the bulk materials at the bottom inlet and lift them vertically to the top discharge point. The elevator includes a drive system with a 490 mm pulley and is assembled using modular casing sections of 3,000 mm length. Depending on the required capacity and installation layout, the elevator can be configured with either one or two legs.

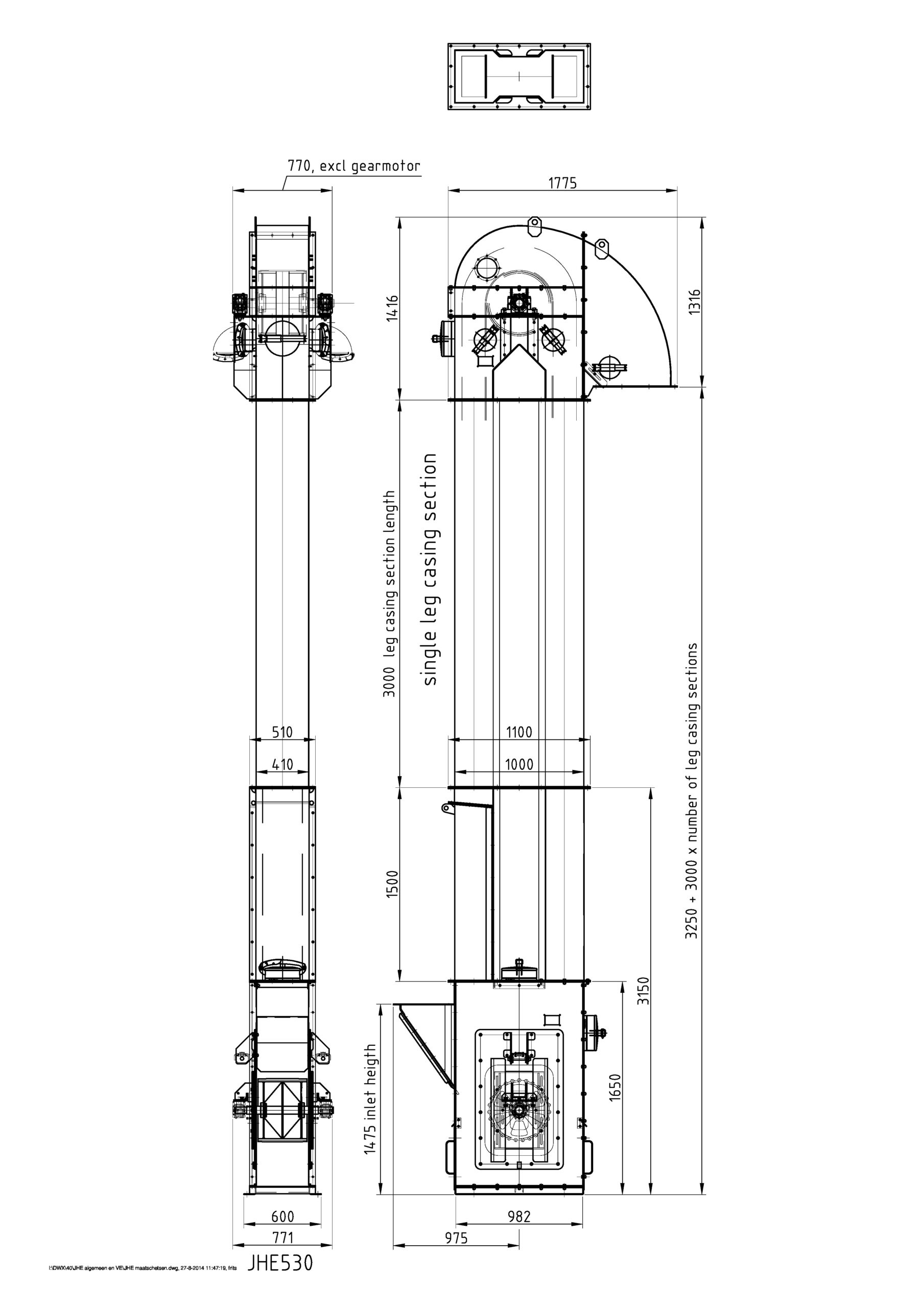

Specifications bucket elevator JHE530
| reference | 530 | |
| diameter drive/reversing roller | A | 490 |
| width foot | B | 1000 |
| height foot | C | 1650 |
| height inlet | D | 1475 |
| feeder inlet | E | 420 |
| axle length foot | F | 775 |
| height head | G | 1350 |
| heigth outlet | H | 1250 |
| width head | I | 1775 |
| depth shaft | J | 300 |
| width shaft | K | 410 |
| shaft segment length | M | 3000 |

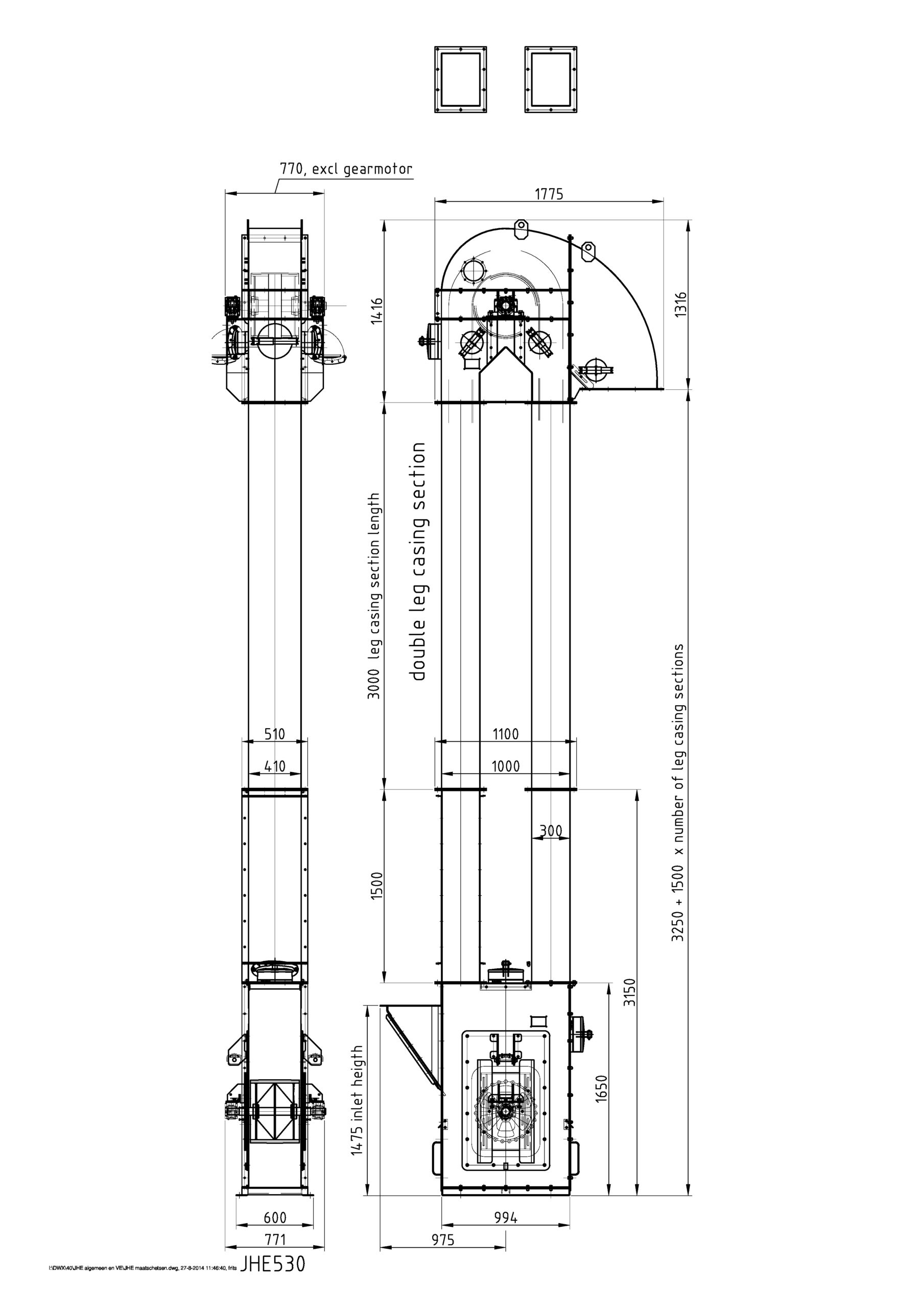

| number of legs | 1 of 2 | |
| total length less c.t.c. length | 2725 | |
| capacity of high capacity buckets (m³/hr at 1 m/s) | 100 | |
| capacity of synthetic buckets for sand and gravel (m³/hr at 1 m/s) | 80 | |
| all dimensions in mm | ||
