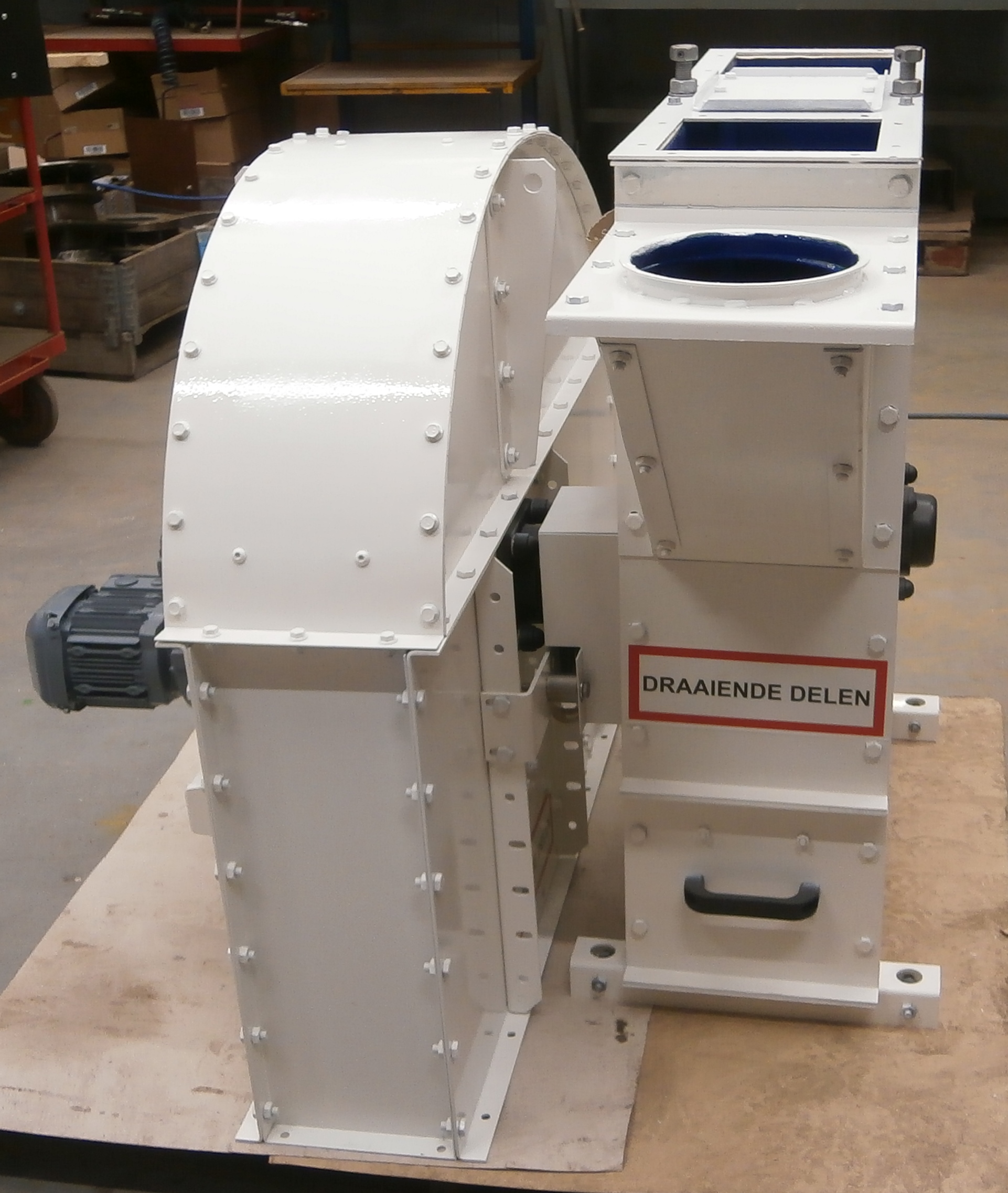

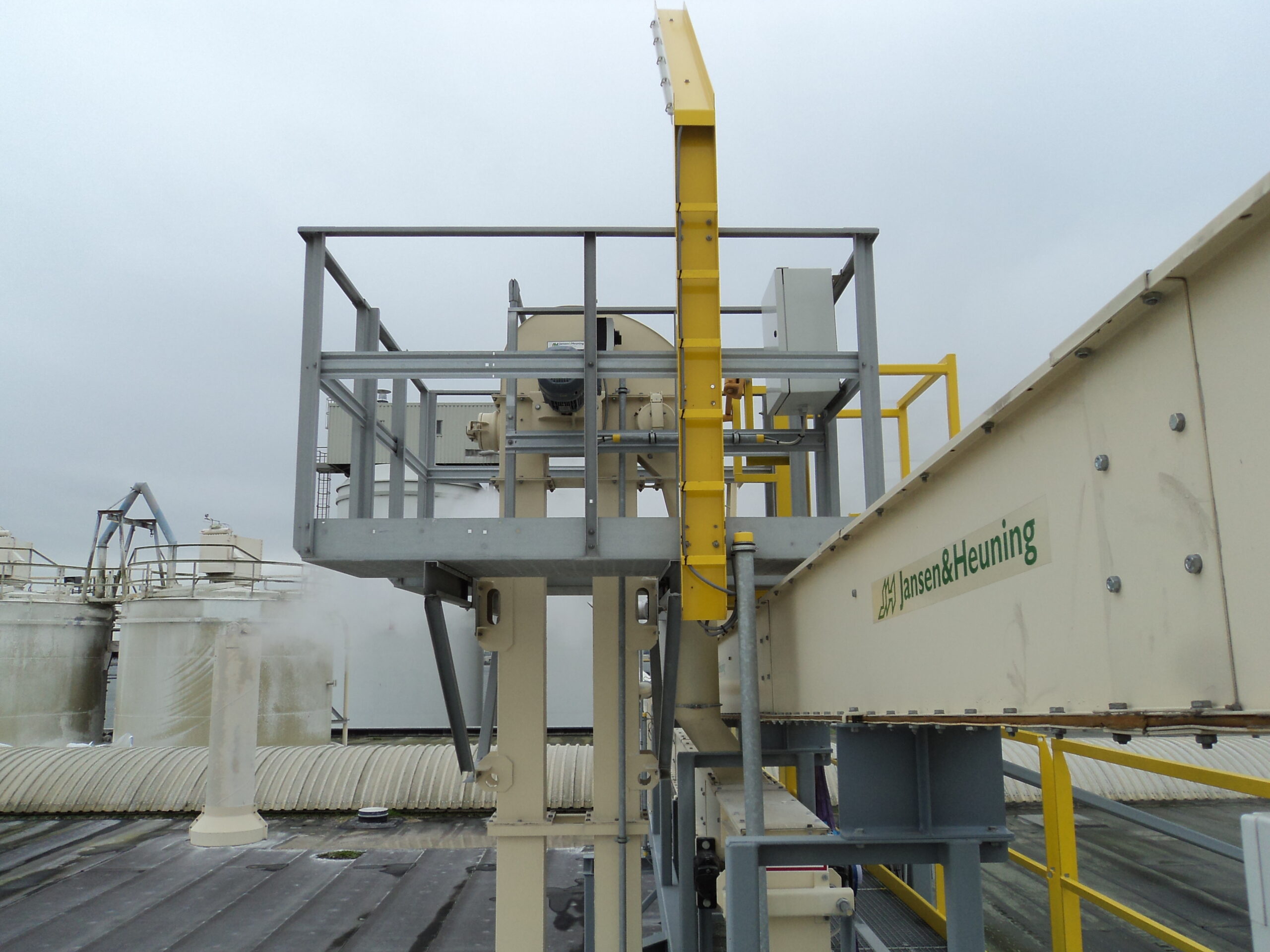

Description Bucket elevator JHE313
Jansen&Heuning’s bucket elevator is designed for vertical transport of bulk materials. Its fully enclosed and dust-tight construction ensures efficient and safe material movement. Thanks to its durable design, this elevator is particularly suitable for heavy industrial applications.
Operation Bucket elevator JHE313
The operation of the JHE313 bucket elevator is based on a continuously moving belt with attached cups. These cups scoop up the bulk materials at the bottom and transport them vertically upwards, where they are discharged via a discharge point. The elevator can be equipped with a low-stretch belt, depending on the specific application. The elevator is optionally available with a low-residue base for minimal product residues.
Specifications bucket elevator JHE313
The technical specifications of the JHE313 bucket elevator are:

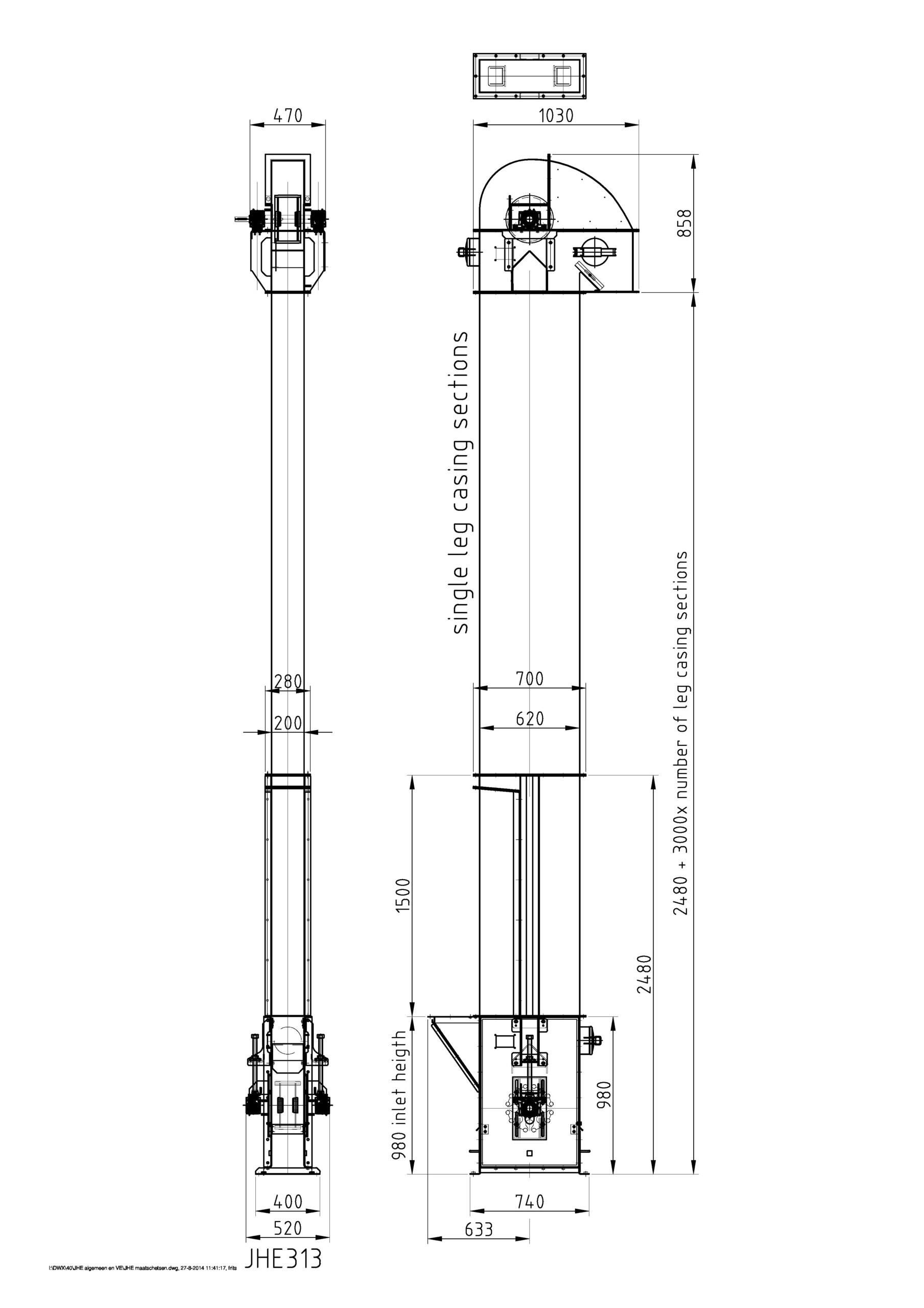

| reference | 313 | |
| diameter drive/reversing roller | A | 300 |
| width foot | B | 620 |
| height foot | C | 980 |
| height inlet | D | 980 |
| feeder inlet | E | 280 |
| axle length foot | F | 520 |
| height head | G | 1030 |
| heigth outlet | H | 860 |
| width head | I | 860 |
| depth shaft | J | 200 |
| width shaft | K | 200 |
| shaft segment length | M | 3000 |

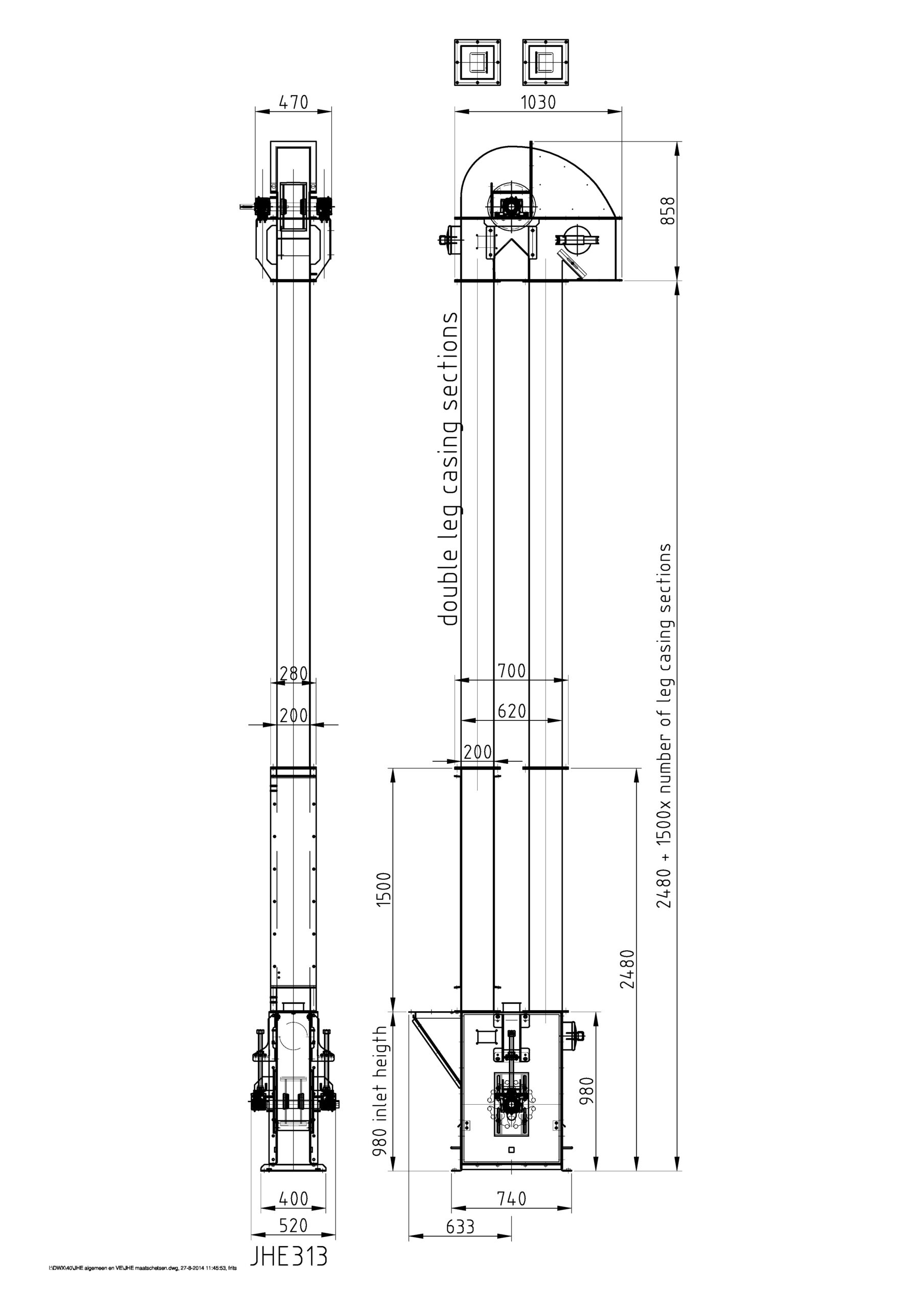

| number of legs | 1 of 2 | |
| total length less c.t.c. length | 1840 | |
| capacity of high capacity buckets (m³/hr at 1 m/s) | 27 | |
| capacity of synthetic buckets for sand and gravel (m³/hr at 1m/s) | 16 | |
| all dimensions in mm |
Contact
For more information or a tailored quotation, please contact Jansen&Heuning:
- Phone: +31(0)50 3126 448
- Email: sales@jh.nl
- Contact form: www.jh.nl/en/contact

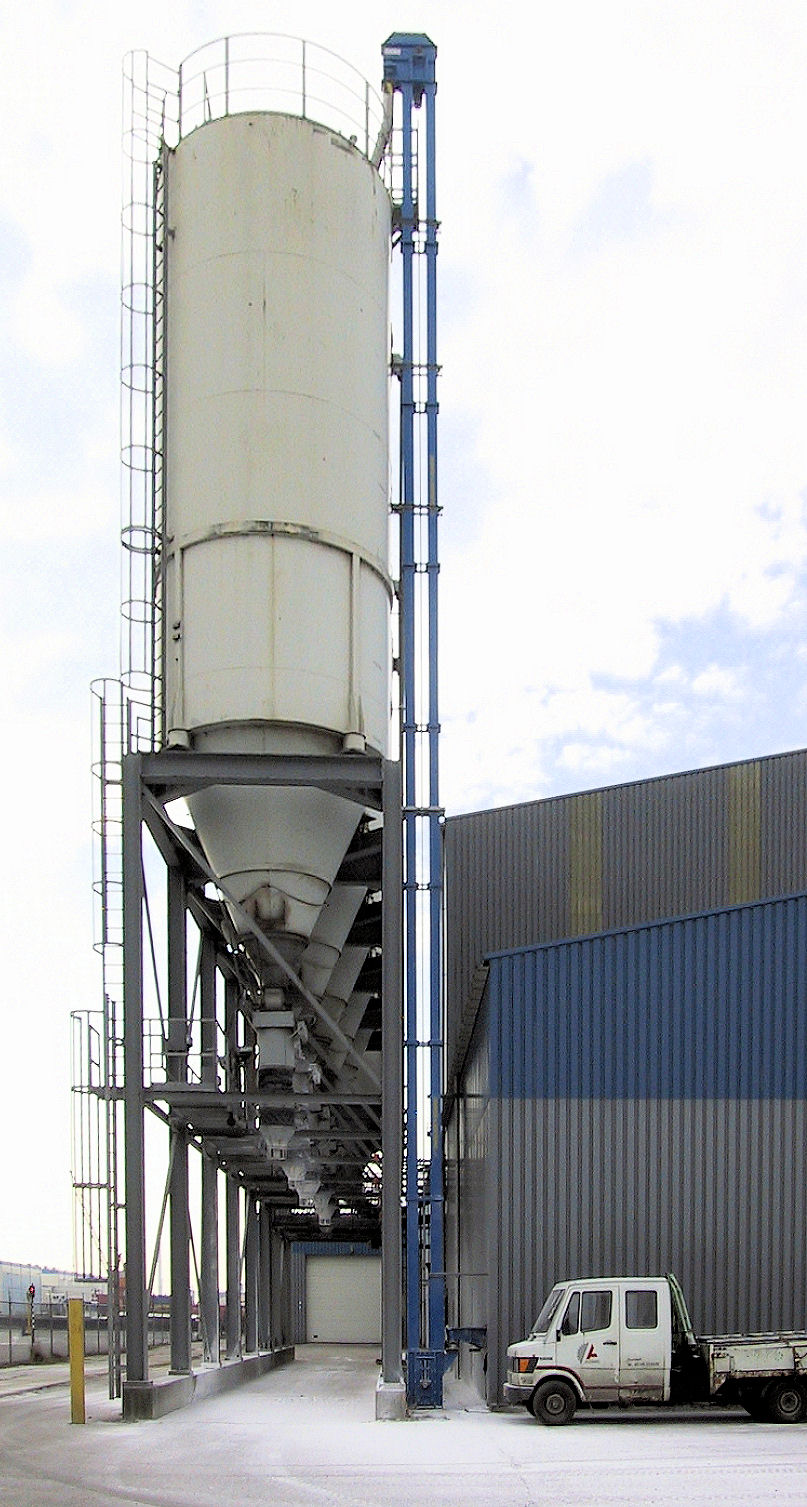

In the video you can see the entire manufacturing process at Jansen&Heuning, the transport and assembly at Maltha Glasrecycling in Heijningen (NL) of elevator type JHE313
