| Name | Trough screw JHS200 |
| Article number | Inruil213 |
Jansen&Heuning has been manufacturing installations for storage and bulk handling since 1901. Creative solutions for bulk handling are designed and built in The Netherlands and installed all over the world. Key success factors are our in-house engineering, dedicated employees and down-to-earth approach. We think along with our customers and come up with reliable standard products and professional, custom-made solutions.

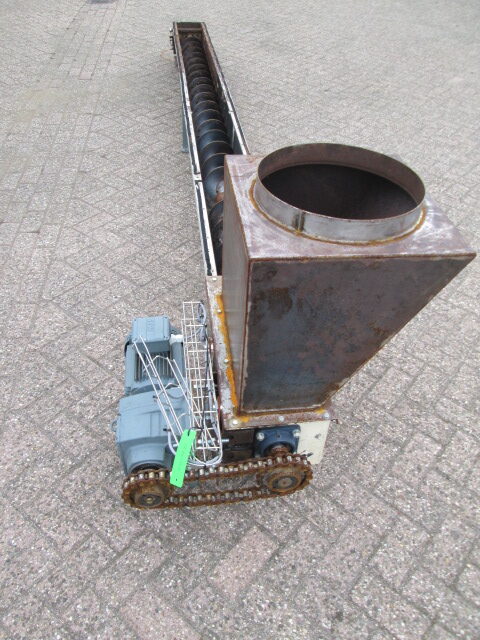

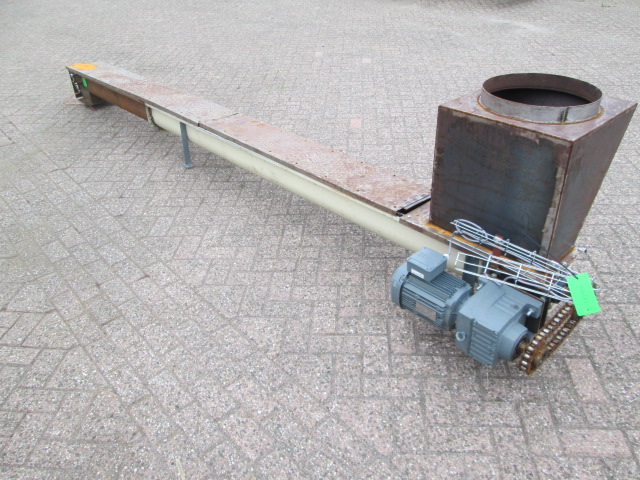

more about usTrough screw JHS200
trough
– trough length 4,410 mm
– trough thickness 3 mm
– material trough St.37/S235JR
screw
– screw diameter Ø200 mm
– screw thickness 3 mm
– pitch 150 mm
– tube diameter Ø60 mm
– material St.37/S235JR
– chain-welded on one side
cover
– sheet thickness 2 mm
– fixing bolts
inlet
– none
outlet
– yes, 1 piece
– dimension 200 x 200 mm (L x W)
– flange dimensions 285 x 285 mm (L x W)
