Description Elevator buckets

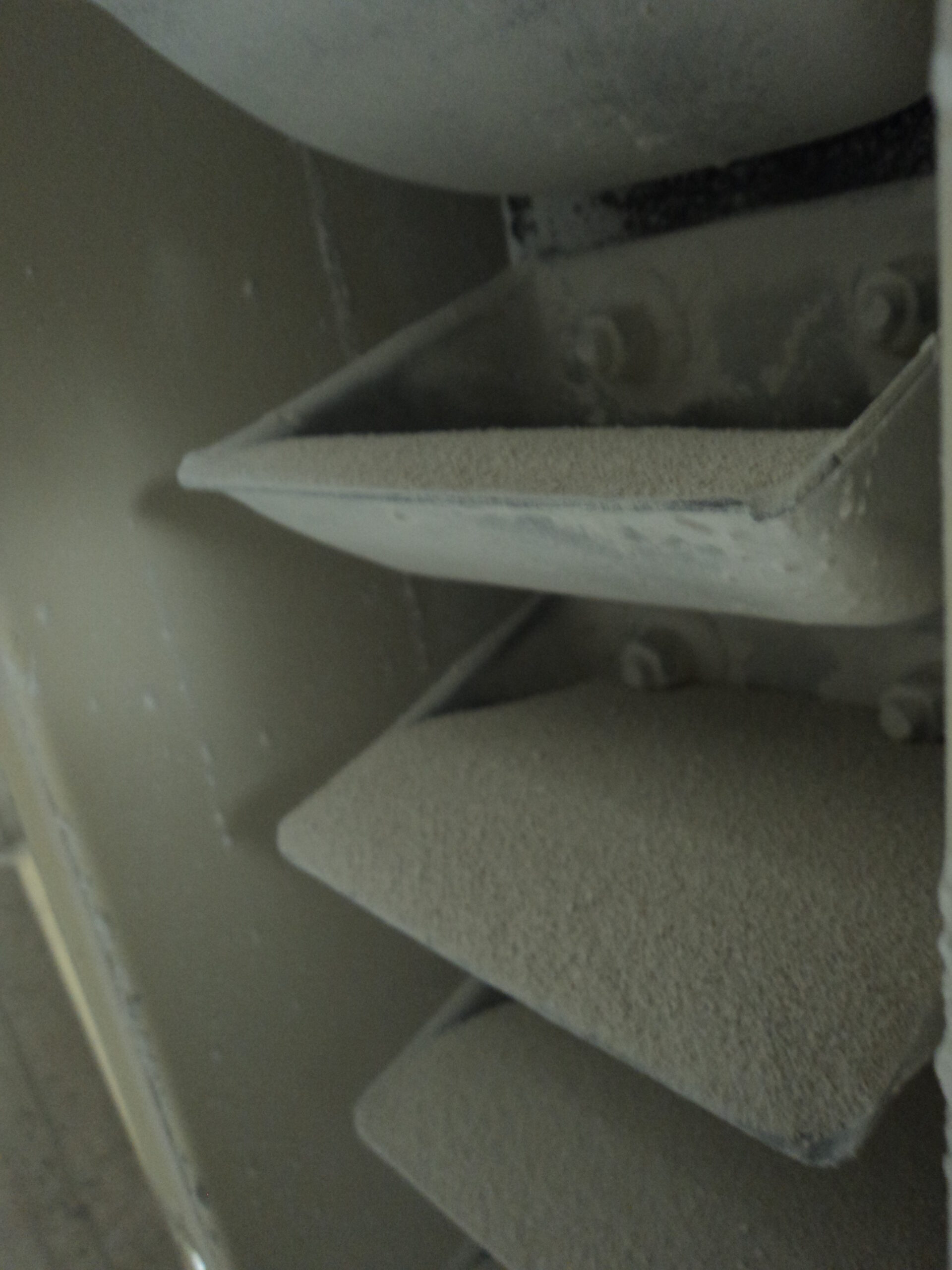

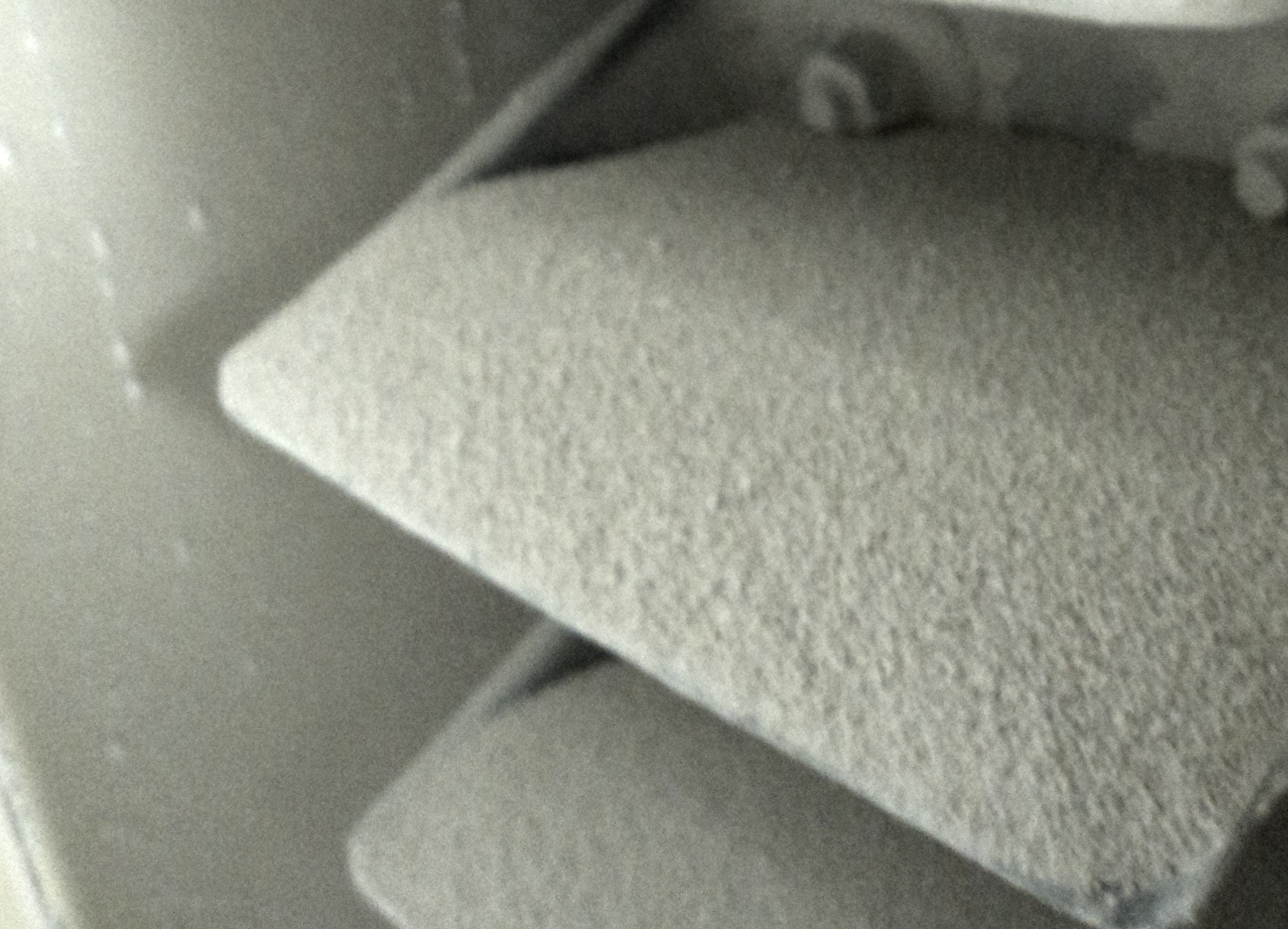

Elevators often operate at high speeds, which inevitably leads to wear and makes replacement necessary over time. The buckets gradually decrease in size, reducing their capacity. Replacement can usually be planned and carried out at a suitable moment.
Request a quote
However, situations may also occur where a piece of steel or similar material enters the bucket elevator, requiring immediate action.

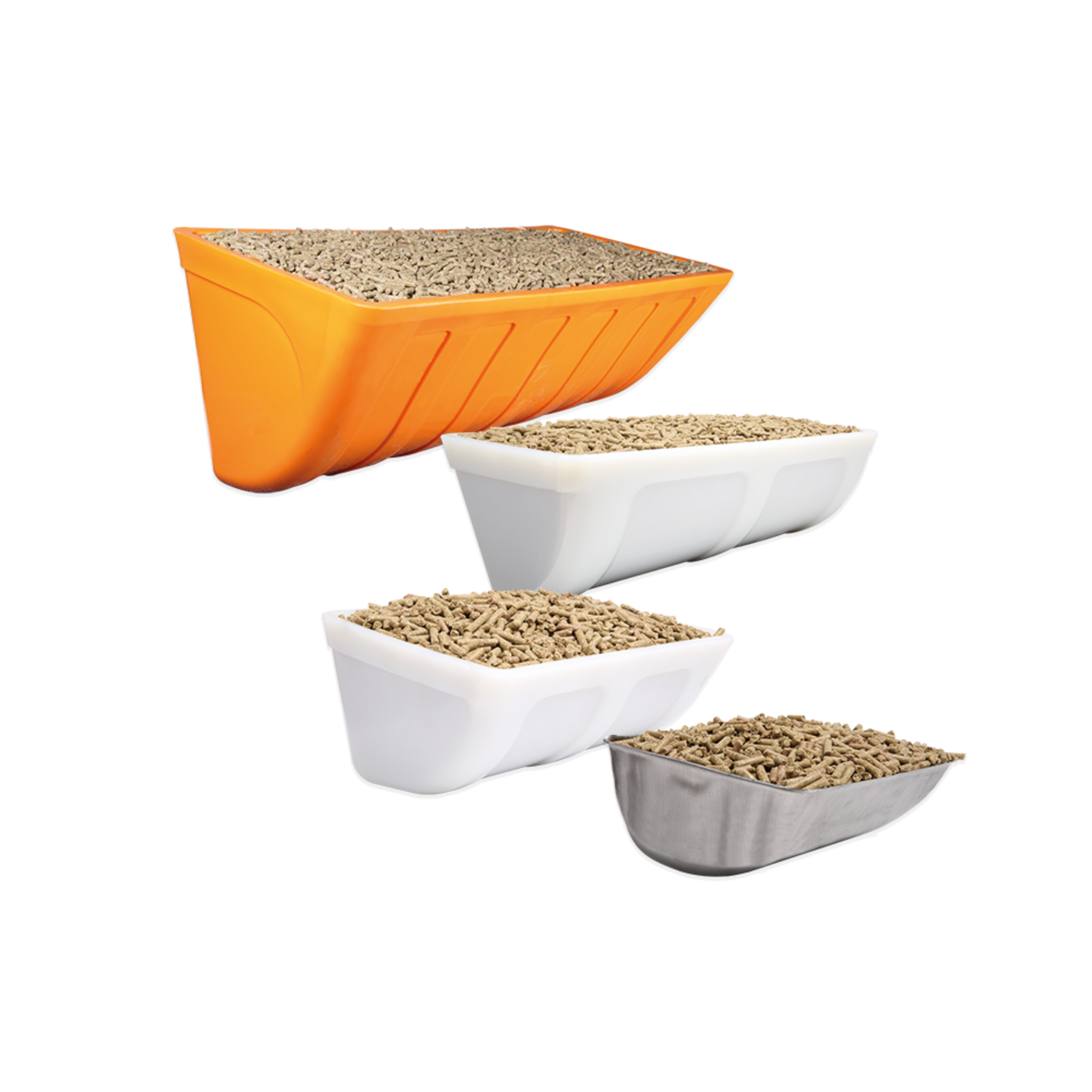

Jansen&Heuning supplies a wide range of elevator buckets from stock and on request. Common versions include:
- Starco and Super Starco high-capacity buckets in steel, stainless steel and plastic
- Buckets for gravity discharge
- Buckets according to DIN19232, DIN 19233 and DIN 19234
- Special buckets for sand and gravel elevators
- Belt fasteners
- Elevator bolts
Jansen&Heuning advises customers on selecting alternative bucket types based on capacity requirements or wear sensitivity.
Available directly from stock
| Article no. | Bucket type |
|---|---|
| ELEVS130S | Super Starco Steel, 130 x 120 mm |
| ELEVS130SPEHD | Super Starco Plastic PE, 130 x 120 mm |
| ELEVS300S | Super Starco Steel, 300 x 180 mm |
| ELEVS300SPEHD | Super Starco Plastic PE, 130 x 120 mm |
| ELEVS370S | Super Starco Steel, 370 x 215 mm |
| ELEVS400SPEHD | Super Starco Plastic PE, 400 x 215 mm |
| ELEVZK140 | Gravity bucket, Plastic PE, 140 mm width |
| ELEVZK300 | Gravity bucket, Plastic PE, 300 mm width |
| Various | Buckets type Columbus, DIN15232, DIN15233, etc. |
Specifications of elevator buckets from stock
For a complete overview of all available bucket types, consult the calculation program. Select the elevator tab and choose the list of bucket types.
- Various bucket types available directly from stock
- Fast delivery for replacements or breakdowns
Application of elevator buckets
Elevator buckets are used in installations for vertical transport of bulk materials in, among others:
- Chemical industry
- Food industry
- Grain and animal feed industry
- Building materials, glass and minerals
- Recycling
