Description Fully automatic bigbag crusher
Are the contents of your bigbags getting hard and are you looking for a machine that automatically crushes your bigbags at the push of a button? Then the bigbag crusher fully automatic from Jansen&Heuning is the right choice. This bigbag conditioner features a turntable and lift table to crush the bigbags from all sides and at any desired height. In the included control box with touchscreen control panel, you can easily choose between manual operation or you can choose your own customised programme. The programmes can be easily adjusted to your own wishes and needs. For example, you can adjust the height between the crushing steps, the force of the crushing movement and the rotation of the turntable for each programme.
Fully automatic bigbag crusher operation
The operator uses a forklift to place a bigbag on the lifting table with turntable. Once the forklift has moved away, the operator can select the right programme on the bigbag crusher. The crushing process is then started with the push of a button. The bigbag is crushed in a maximum of 12 different steps, while the turntable rotates 90°. The bigbag can be crushed several times on either side. Once the bigbag has been completely kneaded, the operator can remove it from the station with the forklift, after which the bigbag can be processed in the rest of the process.
Specifications FIBC crusher fully automatic
- Two hydraulically controlled articulated arms, one scissor table with turntable
- In a maximum of 12 steps (customer choice), the crusher compresses a bigbag from different sides and at different heights (adjustable). This breaks down the contents into small chunks
- Steel control cabinet with 7-inch HMI touchscreen
- PLC Siemens Type S7, 1214 C
- A 32 amp electrical supply is required up to the control side
- Hydraulic power pack
- Scissor table loadable to 2000 kg
- Turntable 90°, rotating left and right, and up to 150 cm in height
- Light curtain to protect the operator
- The automatic crusher is fully assembled and tested in our factory
Options
- Fencing to shield the machine’s working area
- Elevated version for processing bigbags with a maximum height of 2.2 meters

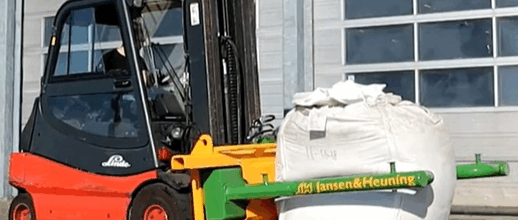

- Additionally available are the semi-automatic and mobile version

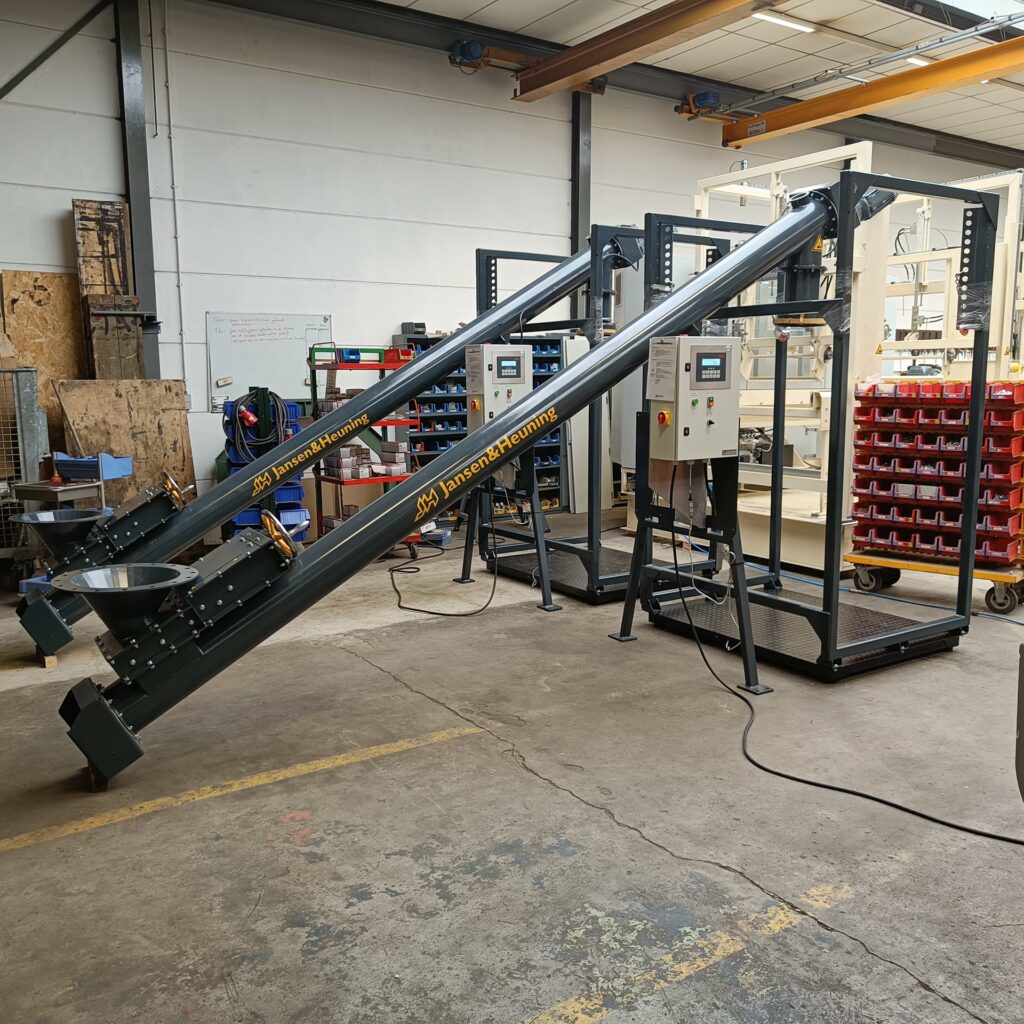

- We recommend taking a look at the corresponding bigbag filling- and unloading station
