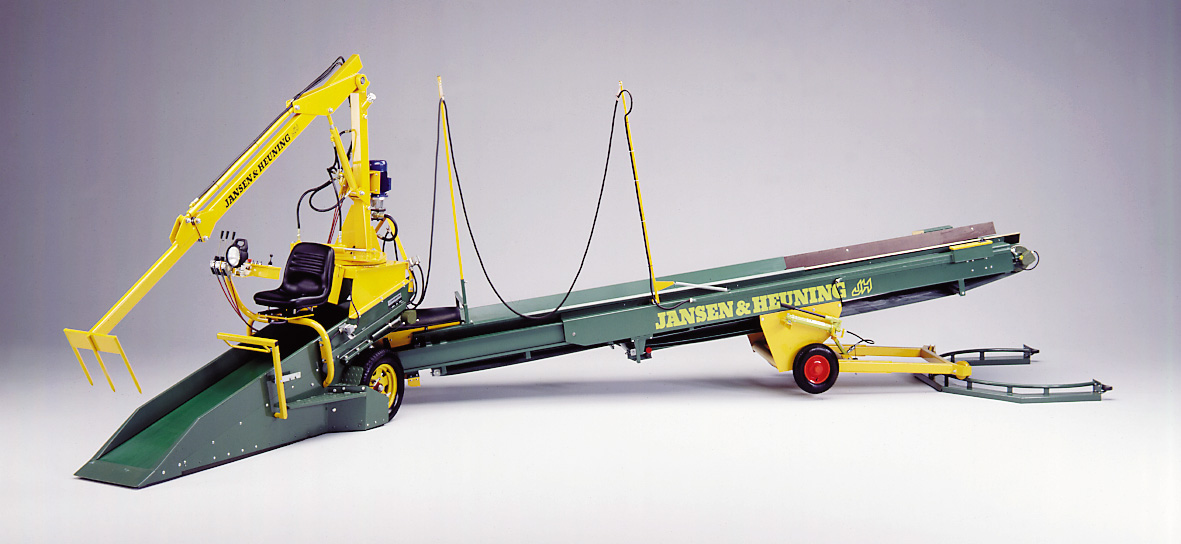

Description T60S pickup unit
The T60S pick-up unit has been developed for the gentle emptying of storage cells containing potatoes, onions and other root vegetables. With a capacity of up to 80 tonnes per hour, this machine handles larger batches without product damage.
| Type | dim. | T60S |
| capacity to (tons/hr) | 80 | |
| beltwidth pickup belt | 550 | |
| beltwidth telescope belt | 600 | |
| working range (m²) | 250 | |
| length pickup truck | B | 3.390 |
| telescope retracted | C | 4.080 |
| telescope extracted | 9.260 | |
| extendable length | 5.180 | |
| maximum machine height | D | 1.500 |
| maximum height telescope | E | 1.110 |
| maximum width | F | 1.080 |
| beltspeed pickup belt (m/s) | 0,56 | |
| beltspeed telescope belt (m/s) | 1,0 | |
| drive truck (kW) | 2 x 1,1 | |
| drive pickup belt (kW) | 1,5 | |
| drive telescope belt (kW) | 2,2 | |
| weight pickup belt (kg) | 760 | |
| weight telescope belt (kg) | 1.050 | |
| moveable side shields front part | yes. |
all measures in mm
Options |
| automatic stop switch |
| remote control |
| wireless remote control |
| two-speed drum motor mp |
| grain version T60L-T60S |
| onion grab, separately delivered |
| onion grab mounting on T60L – T60S |
| scraper pickup belt T60L – T60S |
| scraper telescope belt T60L – T60S |
