Description Unloading pipe bigbags
Not every operator finds it practical to disconnect the bigbag spout via a hatch. The bigbag unloading pipe is easily accessible and works at least as fast as operating via a hatch under an unloading platform.
Application unloading pipe bigbags
Unloading pipes are used for a wide range of bulk solids, depending on the physical properties of the material.
Suitable for, among others:
- powders and fine products
- granules and pellets
- flakes and crystalline products
Applications can be found in sectors such as food, chemical, recycling and bulk logistics.
Operation unloading pipe bigbags

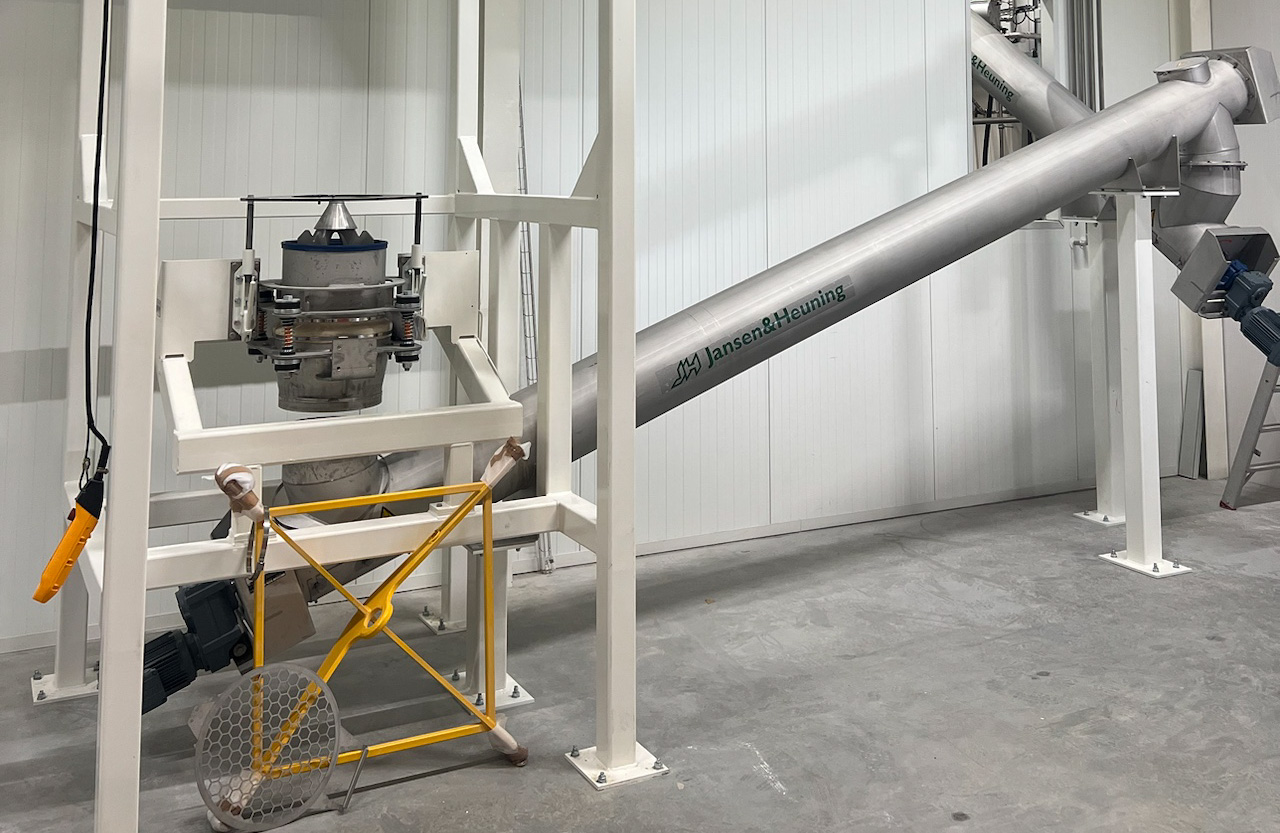

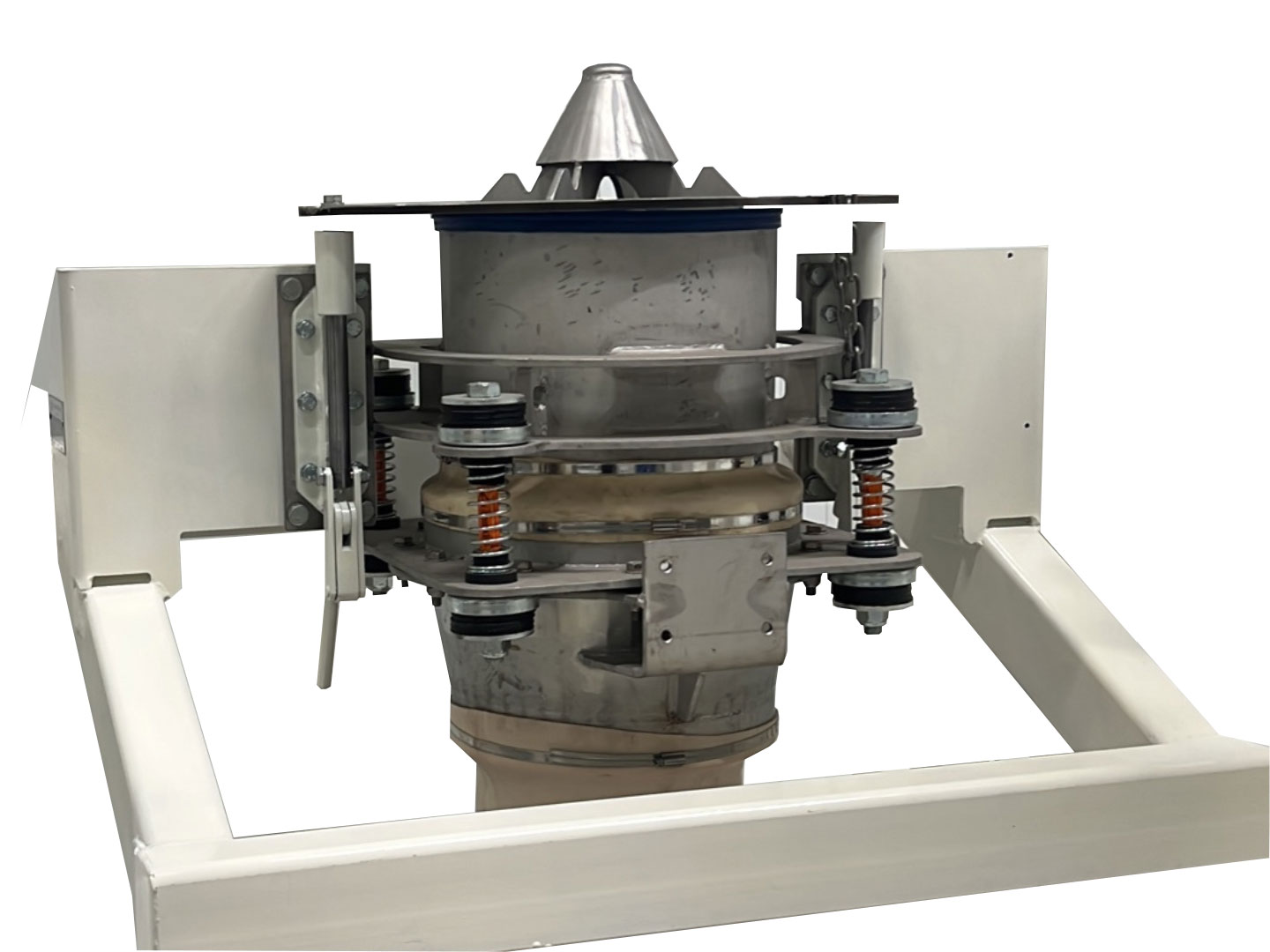

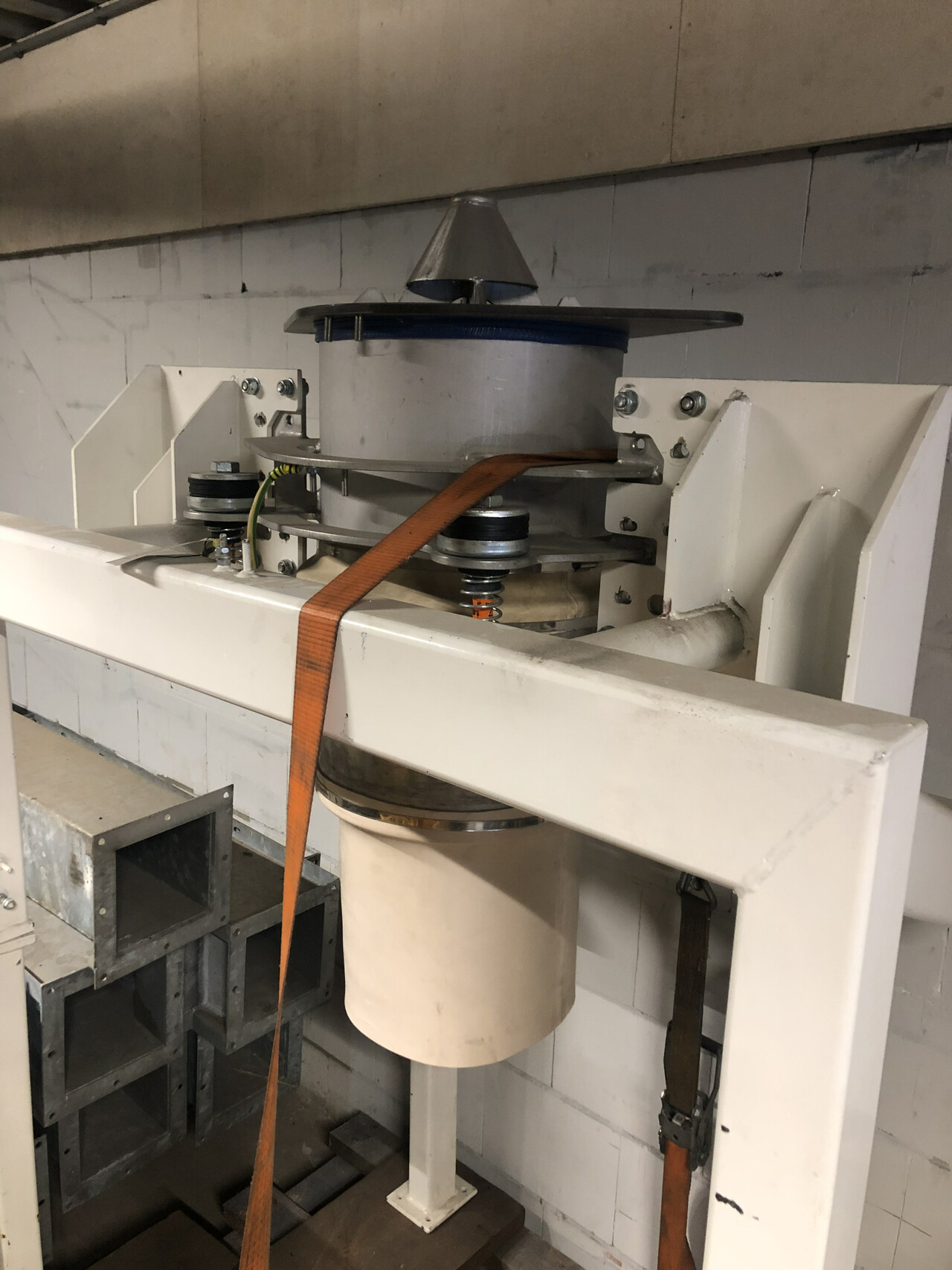

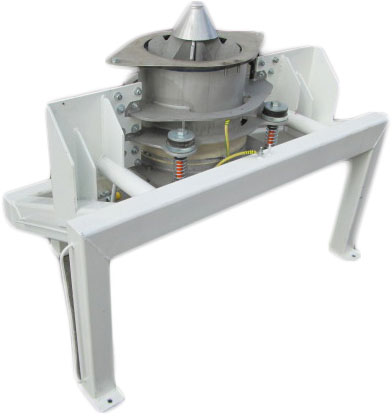

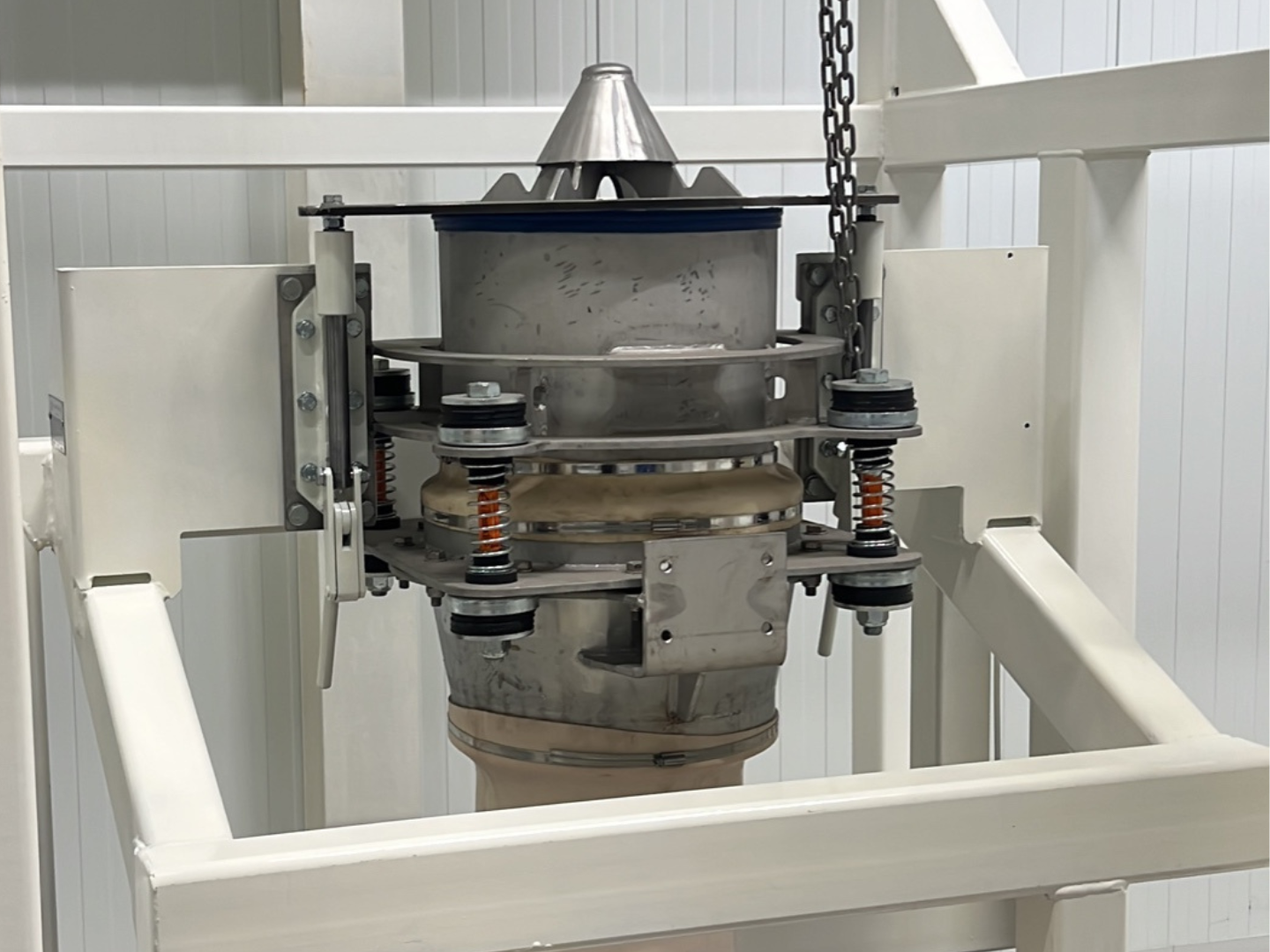

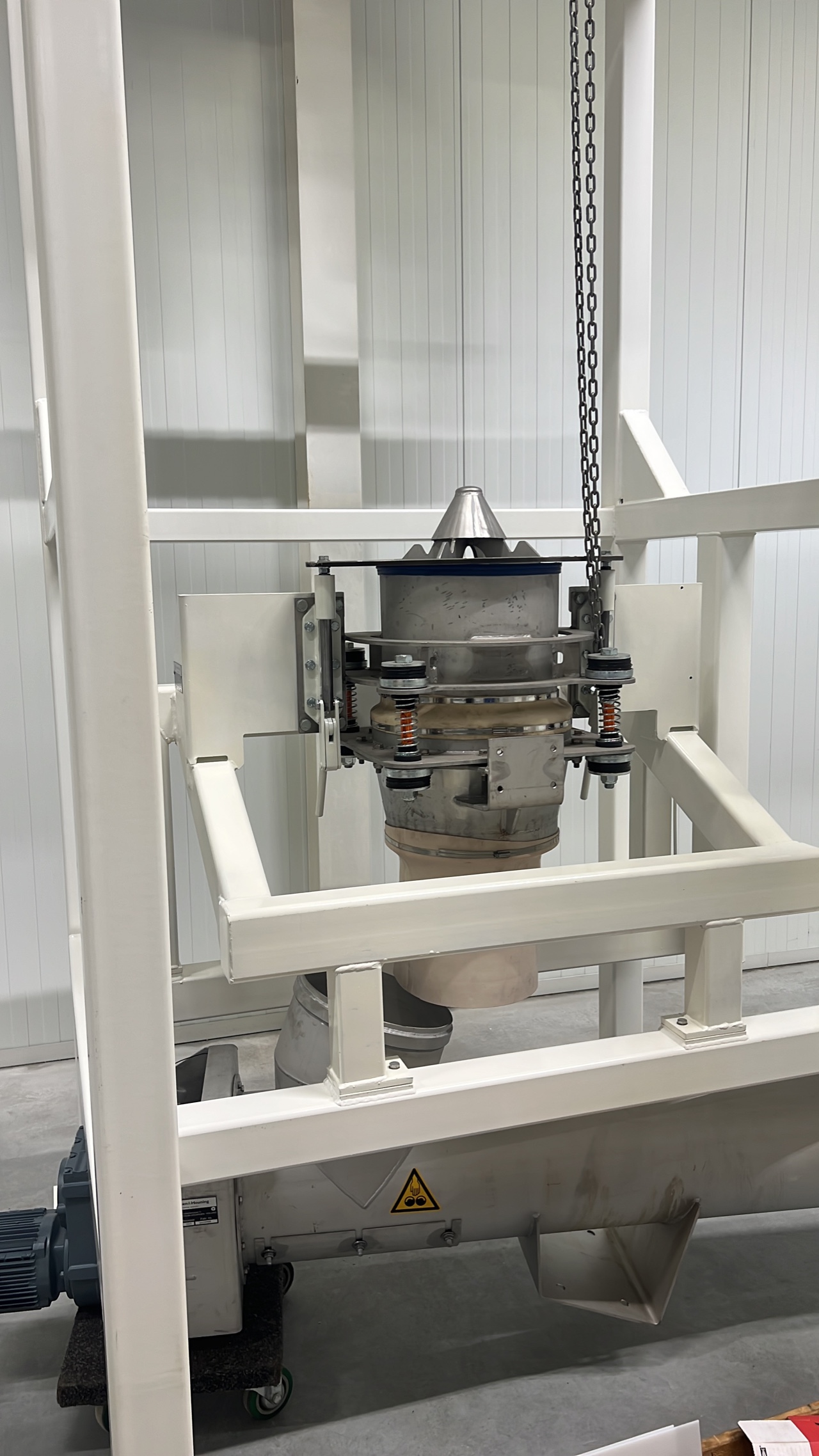

The unloading pipe is attached to the filling spout of the bigbag and is sealed dust-tight by means of pneumatic cylinders. With the extraction connection, the spread of dust particles is prevented.
Specifications unloading pipe bigbags
Suitable for all common filling spout diameters
Advantages unloading pipe bigbags
- Good accessibility for the operator
- Compact design
Execution options and accessories unloading pipe bigbags
- Execution in carbon steel, stainless steel 304 or stainless steel 316
- With lifting beams allowing the forklift to perform other tasks during discharge

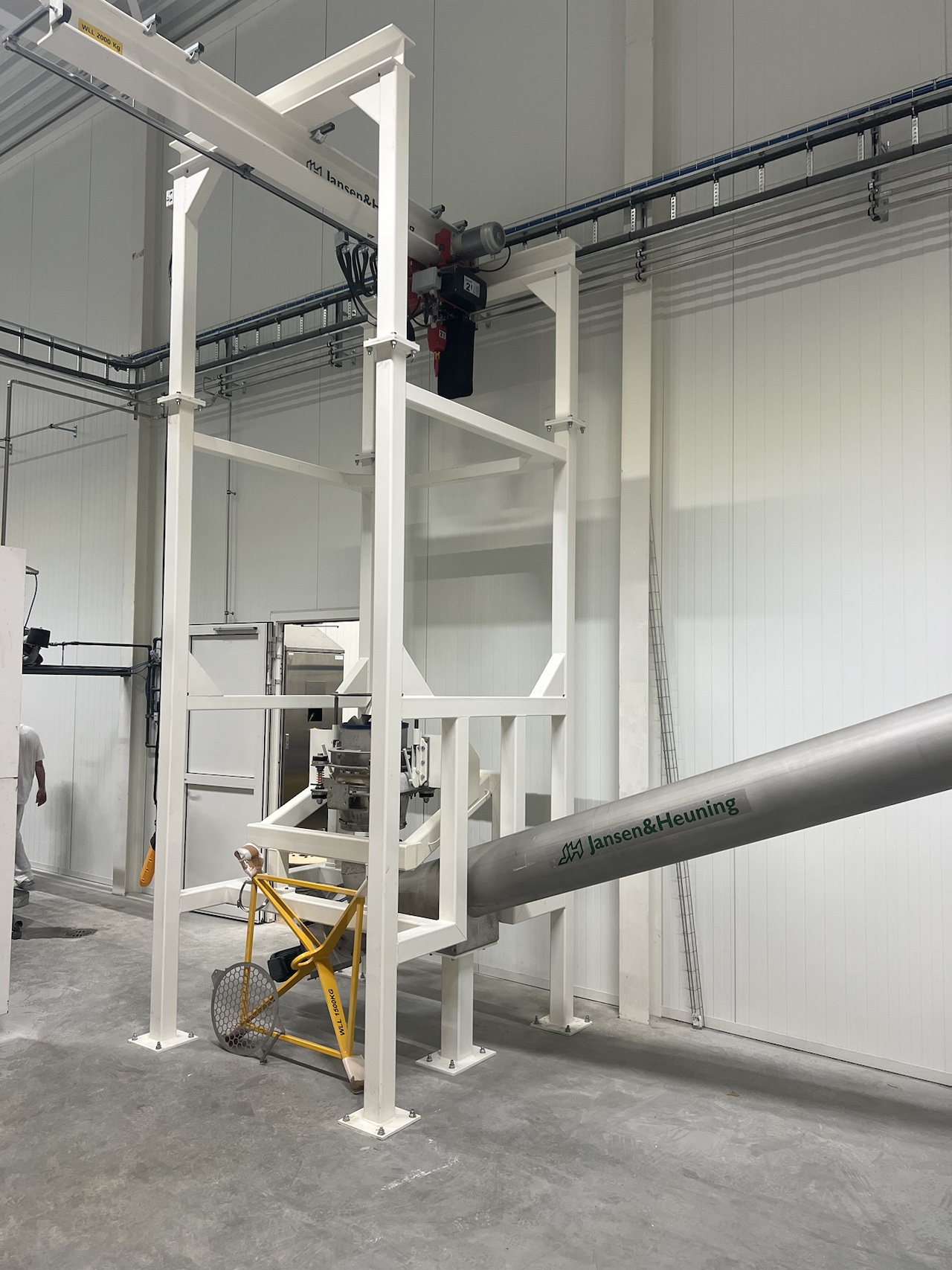

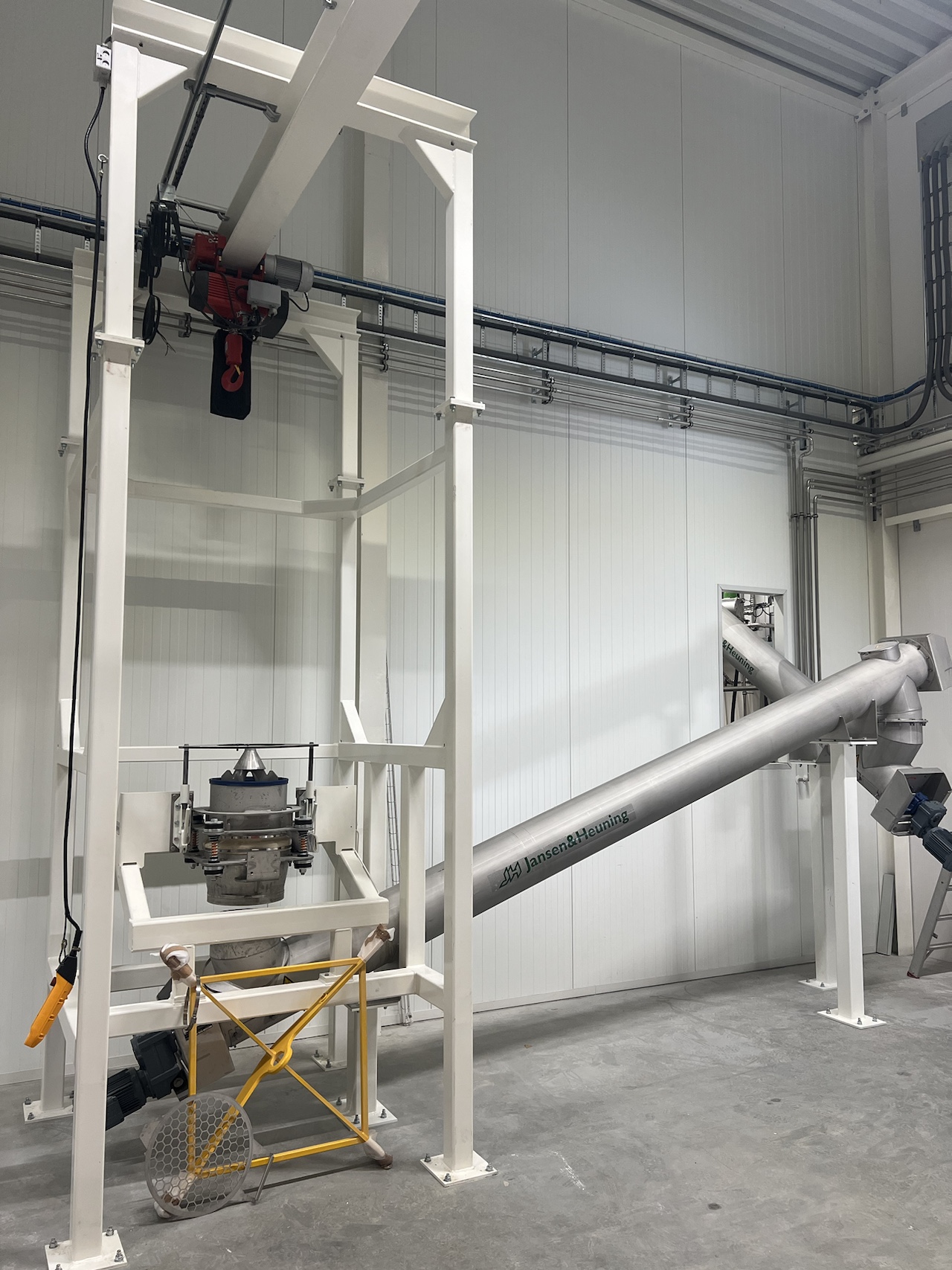

- Steel construction with hoist for unloading without a forklift
- Connection to screw conveyors, chain conveyors or other conveying systems
